Operation Light

OPL 44

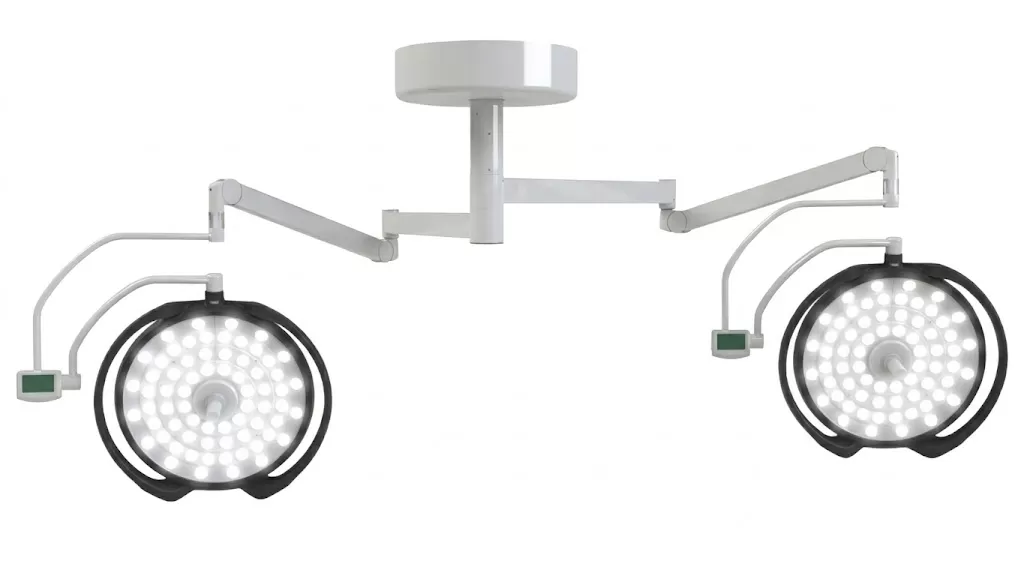

LED surgical lamps are designed to meet all lighting and imaging needs in the operating room. Thanks to the high-capacity LED modules and advanced camera system used, the doctor is provided with maximum visibility in the surgical field. LED lamps, with their various model alternatives and application combinations, can be used in operating rooms, including new generation hybrid operating rooms.

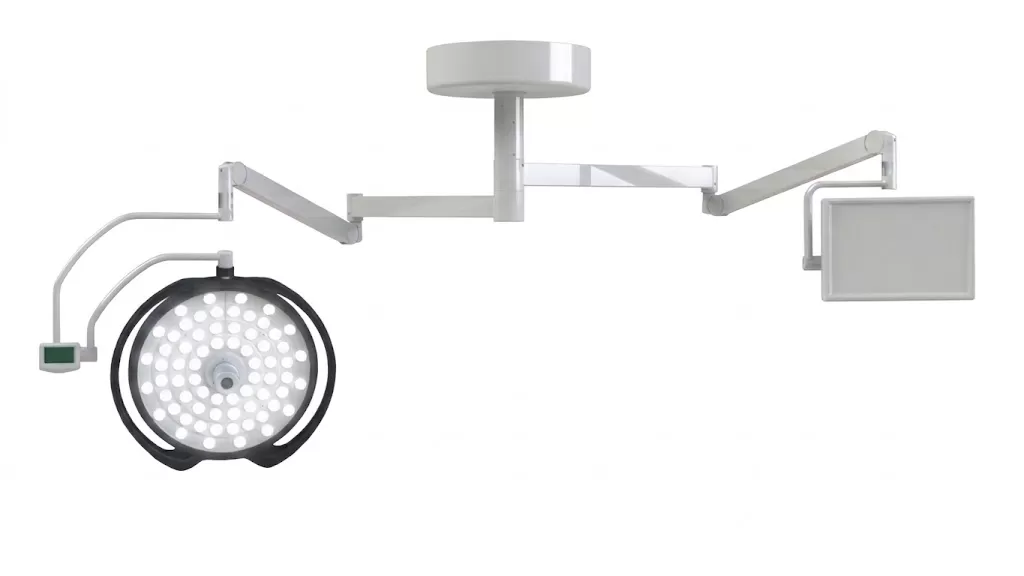

A camera and medical monitor that can be easily integrated into any desired surgical device, offering the possibility to observe and record training surgeries. Manual focus adjustment is possible via the handle or control panel.

Advanced LED technology meets the lighting needs of all types of surgical procedures. Maximum light level achieved with a single button press. LED bulb design with a minimum lifespan of 60,000 hours and individual replacement capability in case of failure.

A low-aerodynamic drag hood design that helps maintain laminar flow around the work area.
Each lamp head is available with either a 4.3” LCD touchscreen panel or an analog control panel with LED displays.
Sensor technology that enables the relevant LED sections to automatically switch off in the event of a light obstruction.
One-touch access to the Endolight function (for endoscopic and minimally invasive surgical procedures).
Adjustable color temperature between 3500-5000 K.
Color touchscreen LCD control panel for controlling all functions.

Lighting Head	Main Title
Print	Ø650mm
Light Intensity (1 m)	160,000 Luxury
Color Temperature	3500 K – 5000 K
Color Resolution Index (CRI)	0,96
Light Intensity Adjustment	10% - 100%
Adjustable Focus Diameter	120 – 300 mm
Increased Heat in the Surgical Area	< 0.5°C
Number of LEDs	68
LED Lifespan	60,000 seconds
IP Protection Class	IP 54
Lighting Head	Satellite Header
Print	Ø440 mm
Light Intensity (1 m)	120,000 Luxury
Color Temperature	3500 K – 5000 K
Color Resolution Index (CRI)	0,96
Light Intensity Adjustment	10% - 100%
Adjustable Focus Diameter	120 – 170 mm
Increased Heat in the Surgical Area	< 0.5°C
Number of LEDs	28
LED Lifespan	60,000 seconds
IP Protection Class	IP 54

Recording Device

Codex	H.265 / H.264
Hard Disk Drive	1 SATA HDD up to 6 TB
Bandwidth	80 Mbps
Resolution	Up to 8.3 MP
Recording Capacity	Recording up to 1ch@4K / 4ch@1080P
Video Output	Real-time preview and simultaneous video output.
His	1/1x His
Links	1x RJ45 (100M), 1x HDMI / 1x VGA, 2x USB

Camera

Fly	2 Megapixel + 30x IP Camera
Image Sensor	1/2.8 CMOS
Lens	4.3 (WIDE) – 129.0 (TELE) mm (F1.6 – F4.7)
Minimum Light	0.1 lux
Image Processing	BLC / HCL / WDR (1080p/60 mod -90 dB, 1080p/30 mod -130 dB), 2DNR, 3DNR

Monitor

Types of LCD Panels	Active Matrix, TFT LCD
Screen Size	19” / 24” (various models)
Resolution	19” : 1280×1024 (5:4) — 24” : 1920×1200 (16:10)
Viewing Angle	170˚ (19”), 178˚ (24”)
Response Time	14 ms
